Blackpool Corporation No. 40

Photo: Jim Dignan

Blackpool 40’s place in the tramway history books is assured by virtue of the fact that this classic ‘Standard’ tramcar design was to be the last of the ‘traditional’ first generation trams to operate in the United Kingdom. By the time it was built, in 1926, Blackpool’s tramway was in a state of considerable upheaval. Six years earlier the tramway had been amalgamated with its northern neighbour, the Blackpool and Fleetwood Tramroad and a programme of track renewal had been completed in 1922-3.

However, Blackpool’s tram fleet was also by now in urgent need of renewal. During the immediate post-war years these needs had intensified as a result of extensive housing development around the inland or town routes, for which many of the existing older ‘sea-front’ tramcars were not so suitable. Hence the quest for a substantial number of economical and reliable all-weather tramcars offering a comfortable ride and at least some protection from the elements.

The mid-1920s were also a period of financial austerity which made it difficult for the tramway manager, Mr Charles Furness, to obtain approval for the purchase of more than a limited number of all- new tramcars though seven completely new Standard tramcars were ordered from Hurst, Nelson of Motherwell.

Approval was much more likely to be given for trams that could be designated as ‘rebuilds’ or ‘replacements’, however, particularly since these could be constructed in-house using the new workshops that had been built at Rigby Road (utilising war-surplus equipment where available). Moreover, such additional trams could also be paid for out of revenue funding without having to draw on the exceedingly limited capital allocation for new trams. This achieved considerable savings for the Corporation to the tune of £400 per tramcar compared with the £1,750 charged by Hurst, Nelson.

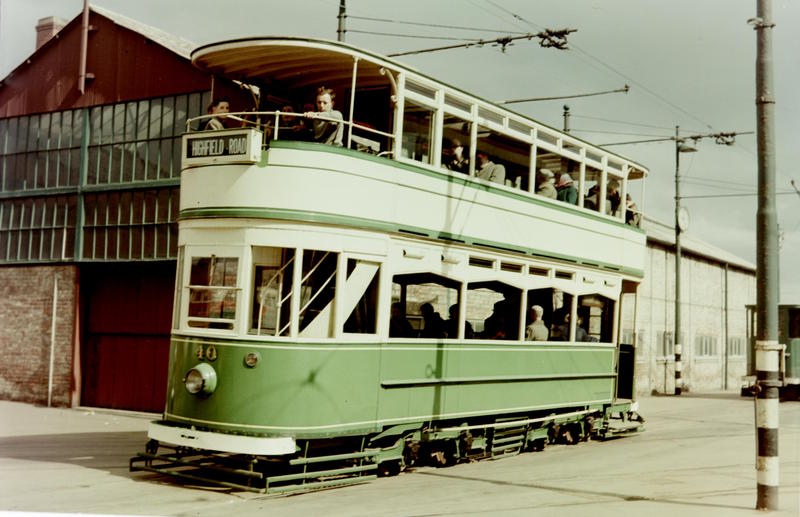

Photo: M.J. O’Connor, 24/5/1959

Taking advantage of this form of ‘creative accountancy’, Number 40 was one of a number of extra trams – 35 in total – that were technically described as ‘rebuilds’ or ‘replacements’ even though they effectively amounted to brand-new Standard trams. All 42 Standards were built to a traditional design and Number 40 (categorised as a ‘replacement’ vehicle) was given a full-length top cover but lacked drivers’ vestibules at this point .

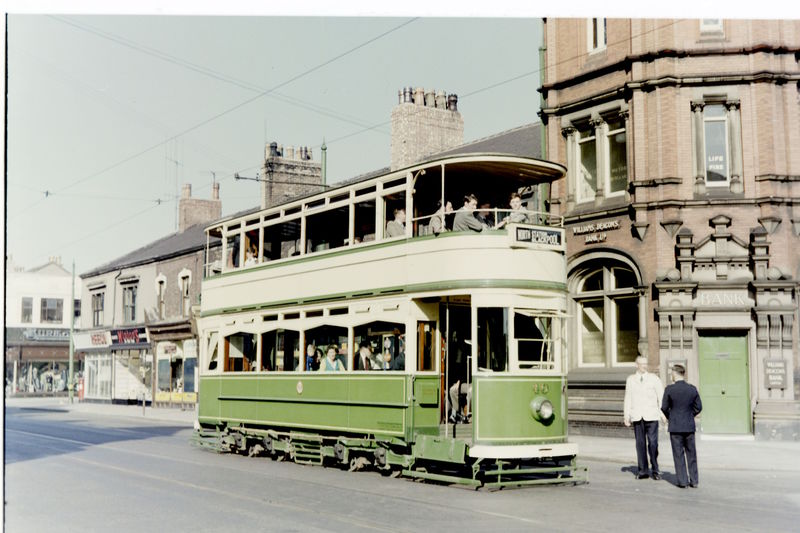

Photo: M.J. O’Connor, 7/4/1959

Blackpool 40 initially appeared in the then-standard livery of bright red and white with teak varnished waist panels. Originally the tram was equipped with leather seats downstairs, which were intended for better-heeled passengers and wooden seats upstairs for others, including their maid-servants. Drivers’ vestibules were added in 1931.

The green and cream livery was applied in September 1934 and upholstered seats were fitted to the upper deck in November 1936. Although the tramcar has subsequently been restored to its 1931 condition and livery externally, this does not extend to the interior seating.

In later years the Standards were largely restricted to the inland Marton route and several were decommissioned as new streamlined cars entered into service, though some of the remaining cars were given a temporary reprieve during the mid-1950s when they were pressed into service as promenade extras and for illumination tours.

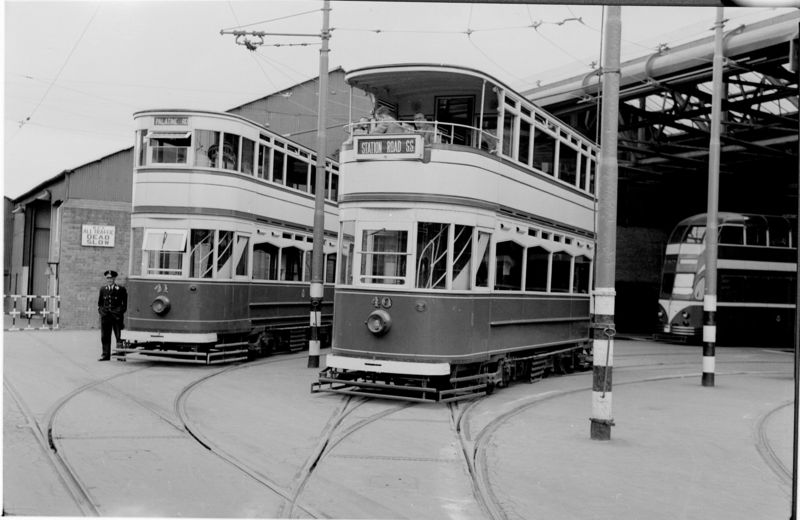

40 & 41, depot. E.K. Stretch, 1960.

Car number 40 was the last open-balcony tram to operate in Britain by the time of its withdrawal on 12 January 1963 and shortly after this it was transported to Crich (on 3rd – 5th October) to embark on a new career in preservation.

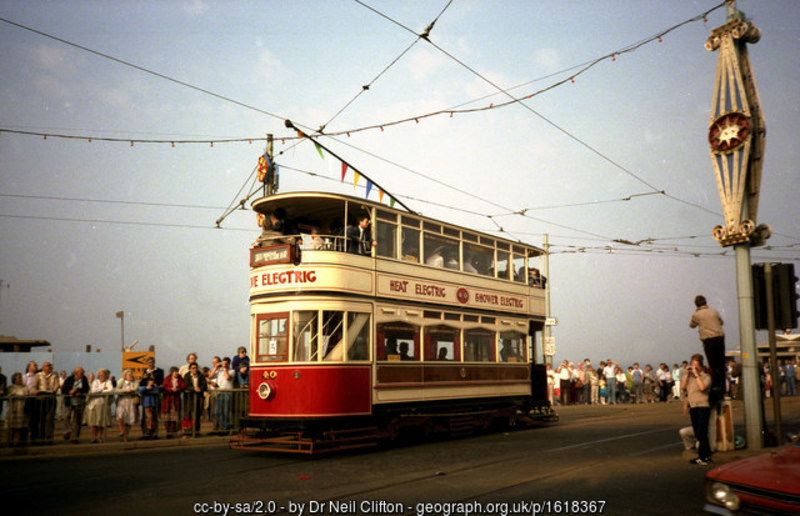

After entering service as one of the ‘workhorses’ of the Crich fleet in 1964, the car was given a thorough overhaul in 1983 / 1984, which saw it being largely restored to 1931 external condition, replete with red livery, just in time for it to serve as the flagship tram in Blackpool Tramway’s centenary celebrations of 1985.

While at Crich Blackpool 40 has been one of the most intensively used trams of the fleet! The tramcar entered the workshops during the 2021 season for a well-earned overhaul that also included recanvassing and a repaint. However, it returned to service in 2023 and by the end of the season had covered a total of 47,440 miles: more than any other tramcar in the fleet

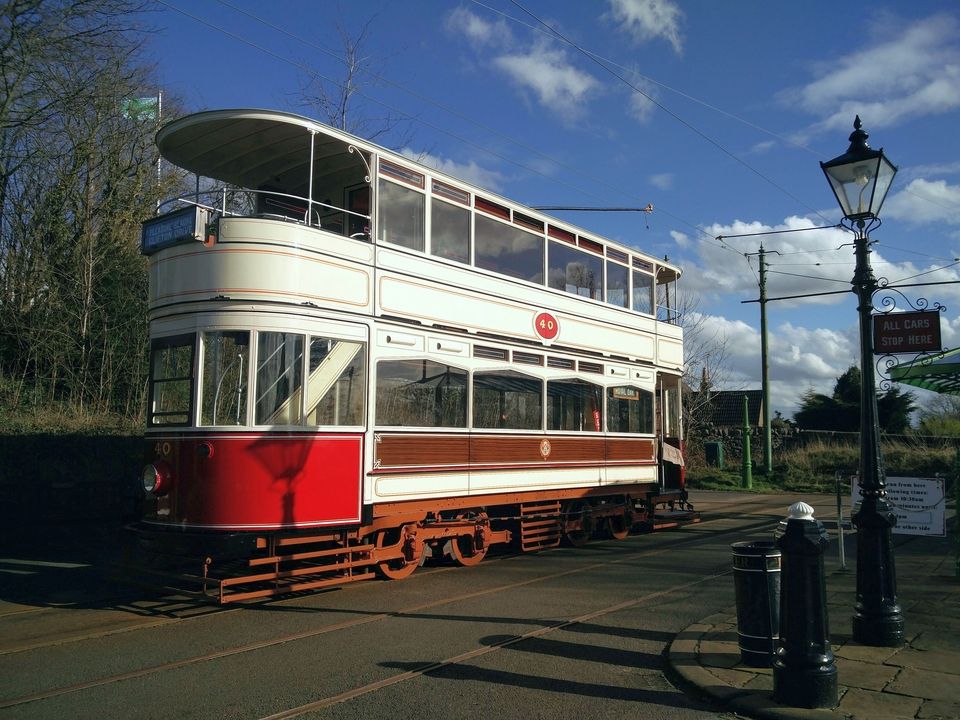

Looking resplendent in the early spring sunshine, Blackpool 40’s new coat of paint is shown off to good effect at Town End. Photo: Jim Dignan, 17/3/23

Specification

Type of tram: Double deck bogie tramcars with open balconies and open downstairs vestibules.
Livery: Red, white and teak
Seating capacity: 78 (46 wooden seats on the upper deck; 32 seats in the lower saloon)
Date built: 1926
Manufacturer of body: Blackpool Corporation.
Manufacturer of truck: Preston McGuire equal wheel bogies
Gauge: 4’ 8½”
Motor: BTH B265C 2 x 35 hp
Controller: BTH B510A
Current collector: Trolley
Modification: December 1931 driver’s vestibules fitted;
September 1934 deep rocker panels fitted and repainted in green livery;
November 1936 major body repairs carried out and upper deck given upholstered seating.
Withdrawn from service: 12 January 1963 (last operating open balcony tramcar in Britain)
Subsequent history: 3rd-5th October 1963 taken to Crich for preservation
1964 entered service at Crich.
Restoration history: 1983 / 1984 complete overhaul and restored to 1931 external condition including red livery with shallow rocker panels but interior seating does not match (should be longitudinal on both sides and covered in red moquette).
Current status: Restored to operational condition and commissioned for service during the current season.
Date started operating at Crich: 1963. Has operated for over 46 seasons, most recently in 2023. Before entering the workshops for an overhaul in 2021, it had not 'missed' a season since 1983!
Total mileage covered at Crich: 47,440. Also clocked up 1,760 miles in Blackpool in 1985
Current location: Depots

Timeline

1926 – 1963Operational on original tramway
1963 – 1983Operational at Crich
1983 – 1984Under restoration
1985 – 1985Operational at Blackpool
1986 –Operational at Crich
